- A furnace transformer carries heavy current into the furnace circuit, so winding losses, connection heating and cooling conditions all feed directly into its thermal behavior. Temperature is one of the few measurable quantities that reflects all of them at once.
- Winding conductors and selected hot-spot locations are the most informative measurement positions, because insulation ageing and thermal stress concentrate where local temperature is highest, not where it is easiest to measure.
- Enclosure, oil-surface or ambient readings do not fully represent internal winding temperature. Temperature gradients between the winding and the outside can be significant.
- Fluorescence fiber optic sensors suit high-voltage, strong-electromagnetic-field environments and defined internal measurement points, since the sensing point has no electrical conductor.
- One fluorescence fiber optic probe measures one defined temperature point. It is point sensing, not distributed sensing.
- Several winding or connection points require several probes and matching measurement channels. The channel count follows the measurement plan, not a fixed number.
- Depending on the project, the temperature system connects to a monitoring instrument, RS485 / Modbus RTU, and onward to PLC or SCADA.
Furnace transformer temperature monitoring starts from an uncomfortable fact: the places that matter most thermally are usually the places that are hardest to reach. Windings sit inside the tank or enclosure, surrounded by insulation, cooling ducts and high electric and magnetic fields. A reading taken from the outside tells you something, but it is a reading of the outside.
What Makes Furnace Transformer Temperature Monitoring Different?
Furnace transformer duty differs from ordinary distribution service mainly in current. A high current transformer feeding a furnace circuit operates with heavy electrical loading, and depending on the furnace process that loading can be sustained, cyclic or changing quickly. Losses in the windings and in the high-current connections rise with load, and the resulting heat has to leave through whatever cooling path the design provides.
Localized heating is the main concern. Winding temperature is not uniform: conductors near the top of a winding, regions with restricted cooling flow, and areas close to lead connections can run warmer than the average. Connection points carrying very high current add their own heat if contact resistance is not low. Not every furnace transformer follows the same operating pattern, so any monitoring plan has to start from the actual design and duty, not from a generic template.
Ambient temperature and enclosure surface temperature are useful, but they cannot represent every internal winding point. Direct transformer temperature monitoring becomes useful when internal winding temperature cannot be represented reliably by enclosure or ambient measurements alone. Furnace transformer temperature monitoring therefore tends to focus on a small number of deliberately chosen internal points, backed by external measurements where those are sufficient.
Where Does Heat Develop in a Furnace Transformer?
Heat develops wherever current meets resistance and wherever cooling is weakest. The locations usually worth evaluating are:
- Winding conductors, where load-dependent copper losses are generated
- Selected winding hot-spot locations identified by the transformer designer
- Winding-to-lead connection areas
- Terminals and high-current connection points
- Regions affected by cooling flow, such as areas near cooling inlets or outlets where applicable
- Other defined locations the transformer design flags as thermally relevant
Hot spots do not sit at a universal position. Their location depends on winding geometry, cooling arrangement, current distribution and load history, so sensor placement must follow transformer design and engineering assessment. Guidance on temperature sensor placement in transformer windings covers the general logic, and a furnace transformer adds its own high-current connection locations on top of it.
The difference between a defined hot-spot position and an unknown one matters here. When the design work identifies a likely hottest region, direct hot-spot monitoring places a probe at that position. Where the location is genuinely uncertain, a single probe cannot find it. Choosing several points is a design decision, not something the sensor does on its own.
Common Causes of Furnace Transformer Overheating
Furnace transformer overheating rarely has a single clean cause. Sustained or abnormal loading raises winding losses. Rapid load variation, where the furnace process produces it, shifts temperatures faster than the cooling system responds. Cooling-system degradation, including blocked or restricted cooling paths, fan or pump problems where those components exist, and contamination that reduces heat dissipation, lets the same load produce higher temperatures than before. Poor electrical connections add local contact resistance. Harmonic-related additional losses can contribute where the supply or furnace process generates harmonics. Installation and ventilation problems round out the list.
Temperature data does not identify every one of these causes by itself. A rising trend at a winding point tells you something has changed; load records, cooling-system status, electrical measurements and inspection findings together explain what. Temperature trend plus load plus inspection plus electrical data is a more reliable basis for judgment than temperature alone. Background on transformer hot spots and how they are monitored gives the general picture.
| Potential Thermal Issue | Typical Temperature Effect | Possible Measurement Location | What Temperature Data Can Indicate |
|---|---|---|---|
| Sustained or abnormal loading | Gradual rise across winding temperatures with load | Selected winding points | Whether winding temperature follows load as expected or runs higher than the load alone explains |
| Rapid load variation | Fast swings; winding may lag or overshoot relative to external readings | Winding points with defined measurement | How quickly internal temperature responds to furnace load changes |
| Cooling-system degradation | Higher temperatures at the same load over time | Winding points and cooling-related regions | A drift between load and temperature that points toward cooling performance |
| Blocked or restricted cooling path | Local rise near the affected region, not necessarily uniform | Points near the suspected restricted region | Localized difference between measured points |
| Poor electrical connection / contact resistance | Local heating at the joint, growing with current | High-current joints and terminals | A connection running warmer than comparable connections under similar current |
| Harmonic-related additional losses | Extra heating not explained by fundamental-frequency load | Winding points | Temperature higher than load records suggest; electrical data is needed to confirm cause |
| Contamination affecting heat dissipation | Slow upward drift over longer periods | Accessible surfaces; winding points | Long-term trend change; inspection confirms the cause |
Furnace Transformer Temperature Measurement Methods
No single method covers every measurement location on a furnace transformer. Each has places where it works well and places where it does not.
RTD / PT100
RTDs are conventional contact sensors, and in many normal locations they are a sound choice. They use electrical conductors between the sensing element and the instrument, so insulation requirements and installation arrangements matter, particularly near high-voltage parts or strong fields. Where the location is accessible and the electrical environment is manageable, RTDs often meet the requirement without difficulty.
Thermocouples
Thermocouples are widely used and the measurement chain is simple. They also rely on metallic conductors, so the strength of the surrounding electrical environment can influence whether a thermocouple suits a given measurement point. That is an application-choice question, not a verdict against the sensor type.
Infrared and Thermal Imaging
Infrared measurement is useful for accessible surfaces and for periodic inspection: bushings, bus connections, external joints, enclosure surfaces. The limitation is built into the method. It reads surfaces it can see, and it cannot directly read an embedded winding location. The trade-offs are covered in more detail in the comparison of point and non-contact temperature measurement.
Fluorescence Fiber Optic Temperature Sensors
Fluorescence fiber optic temperature sensors measure temperature at a defined physical point, the sensing tip. The connection between the tip and the instrument is optical, so there is no metallic electrical sensing conductor at the measurement point. That is why they are used for embedded winding measurement and in high-voltage, strong-EMI locations. Temperature is derived from the fluorescence behavior of the sensing material, which is the basis of fluorescence lifetime temperature sensing. The limits are equally clear: each probe covers one point, and the sensing positions have to be decided in advance.
Temperature Measurement Method Comparison
| Method | Measurement Type | Suitable Measurement Location | Electrical Conductors at Sensing Point | Embedded Winding Measurement | Continuous Online Monitoring | Main Limitation |
|---|---|---|---|---|---|---|
| RTD / PT100 | Contact, point | Accessible points, oil or air temperature, enclosure, general locations | Yes | Depends on insulation design and access | Yes | Insulation and wiring requirements near high voltage and strong fields |
| Thermocouple | Contact, point | Accessible points where wiring is practical | Yes | Depends on insulation design and access | Yes | Metallic conductors in strong electrical environments |
| Infrared / Thermal Imaging | Non-contact, surface | Visible external surfaces, bushings, bus connections | None (non-contact) | No | Typically periodic inspection; fixed installations possible for visible targets | Surface only; cannot read hidden winding points |
| Fluorescence Fiber Optic Sensor | Contact, defined point (optical) | Defined internal winding points, high-current connections, high-voltage areas | No | Yes, when planned into the winding | Yes | One probe per point; positions must be chosen in advance; installation planning needed |
Method selection depends on measurement location, electrical insulation, physical access, the EMI environment, the number of points required, the integration architecture, the accuracy required and the response needed. A transformer often ends up with more than one method: fiber optic at defined internal points, conventional sensors for oil, air or enclosure temperature, and infrared inspection for accessible external connections.
Direct Furnace Transformer Winding Temperature Measurement
Three different things get called winding temperature, and they are not interchangeable. Calculated or inferred winding temperature is derived from other measurements such as load and oil or surface temperature, using a model. Surface temperature is what a sensor or camera reads on an accessible exterior. Direct temperature measurement at a defined winding point is a sensor physically at that location reading its own temperature.
Direct measurement does not mean automatic detection of every possible hot spot. A fluorescence probe measures the physical location of its sensing tip and nothing else. One fluorescence fiber optic probe measures one defined temperature point. Multiple defined winding points require multiple probes and corresponding measurement channels.
For a furnace transformer, this means the quality of the measurement depends heavily on the decision about where to put the tips. A packaged arrangement such as a transformer winding fiber optic temperature monitoring package provides the probes, fiber and instrument as a set, but the positions come from the transformer design. The principles behind transformer winding temperature measurement apply, with the added emphasis on high-current connections and furnace-duty loading.
How Fluorescence Fiber Optic Temperature Measurement Works
Fluorescence lifetime sensing relies on a sensing material at the probe tip whose fluorescence decay changes with temperature. The measurement chain runs in this order:
- Excitation light is sent down the fiber to the sensing material.
- The material absorbs it and emits fluorescence.
- The fluorescence returns along the fiber to a photodetector.
- The detector records the decay waveform after excitation stops.
- The instrument extracts the fluorescence lifetime from that decay.
- A calibration relationship converts lifetime into a temperature value.
The temperature-related quantity is the decay time, not the amount of returned light. This distinction is practical. Reflected or returned optical power can shift with fiber bending, connector condition or source variation, while lifetime is a time characteristic of the decay and does not depend on absolute optical power in the same way. Calibration links the lifetime of a given sensing material to temperature, and demodulation is the signal processing that turns the detected decay into a lifetime value.
The excitation, decay response and calibration are properties of the sensing material and the instrument, which is why the same principle appears across applications in fiber optic temperature measurement. In a furnace transformer, the useful consequence is that the fiber carrying the signal is dielectric, so the optical path itself does not introduce a metallic electrical path into the winding region.
Multi-Point Monitoring for Furnace Transformer Windings
Large or complex furnace transformers can need more than one measurement point because a single point cannot describe several windings, phases and connection areas. Possible interest includes multiple winding positions, individual phases, inlet and outlet related thermal areas where the cooling arrangement makes that relevant, high-current joints, and selected connection locations.
Channel count follows actual measurement points. There is no fixed number that suits every furnace transformer; the measurement plan sets it, and the plan comes from the design. Configuration logic for fiber optic sensor channel planning for transformer windings is covered separately, and multi-point temperature monitoring as a system approach explains how independent points are collected together. On the instrument side, a multi-channel fiber optic temperature transmitter reads several probes and reports each as an independent temperature value.
Typical Furnace Transformer Fiber Optic Monitoring Architecture
The signal path starts at the fluorescence fiber optic probe at a defined winding or connection point. An optical fiber, with an extension connection where the routing requires it, carries the optical signal out of the transformer to a temperature transmitter or demodulator. That unit converts the fluorescence signal to temperature values and feeds a monitoring instrument. Where the instrument supports it, RS485 / Modbus RTU carries the temperature data onward to a PLC or SCADA system.
INNO supplies the fluorescence temperature measurement side of this chain. It is not a furnace control system or plant SCADA supplier. Temperature signals integrate into higher-level control or monitoring according to the project's interfaces, and alarm logic is defined by the project requirements. Arrangements for fiber optic temperature monitoring systems cover the instrument options, and PLC and SCADA integration describes how the data reaches the plant side.
Typical INNO Fluorescence Fiber Optic Parameters
Typical INNO fluorescence fiber optic configuration. Typical values depending on probe and monitoring-system configuration.
| Parameter | Typical Configuration | Engineering Note |
|---|---|---|
| Measurement Principle | Fluorescence decay time | Point sensing at the probe tip, not distributed sensing |
| Temperature Range | −40 °C to +260 °C | Configuration dependent |
| Accuracy | ±0.5 °C to ±1 °C depending on configuration | Accuracy depends on probe and instrument configuration |
| Resolution | 0.1 °C | Resolution is the display step, separate from accuracy |
| Response | <1 s for standard configurations | Actual response depends on probe structure and installation |
| Probe Diameter | 2–3 mm, configurable | Suitability depends on the installation location |
| Fiber Length | Configurable according to application requirements | Set by routing distance from probe to instrument |
| Electrical Insulation | >100 kV for applicable configurations | Applies to applicable configurations only |
| Connector | ST | Optical connection to the instrument or extension |
| Channels | Single-channel and multi-channel configurations | One channel per defined measurement point |
| Communication | RS485 / Modbus RTU for applicable monitoring instruments | Interface depends on the selected instrument |
Actual configuration depends on probe structure, measurement location, installation method and monitoring instrument.
Selecting a Furnace Transformer Temperature Monitoring Configuration
Define the Measurement Locations First
Selection begins with the transformer design, not the sensor catalog. Winding hot-spot positions, the number of points, whether each location is embedded or accessible, and which connections need measuring all come from the transformer design and engineering assessment. Locations that are accessible after assembly can use other methods; locations inside the winding are where optical sensing earns its place.
Determine Probe Structure and Fiber Routing
Probe diameter, fiber length and mechanical protection depend on where the probe sits and how the fiber leaves the transformer. Routing needs thought: how the fiber passes through the winding structure, how it is protected from mechanical damage, how bending and installation constraints are handled, and how all this fits into the transformer assembly sequence. Bend limits and protection details should be confirmed against the specific probe and fiber configuration.
Match Channel Count to Actual Measurement Points
One point means one probe. Multiple points mean multiple channels. A plan that lists eight measurement locations needs eight probes and channel capacity for eight, regardless of what a standard package size might be. Starting from the point list and then selecting the instrument avoids buying capacity that does not match the plan.
Define Monitoring and Communication Requirements
The monitoring side covers local temperature acquisition, multi-channel monitoring, and whether data goes to RS485 / Modbus RTU, a PLC or SCADA. Alarm logic is determined by project requirements, so settings come from the transformer designer and the operator, not from the sensor supplier.

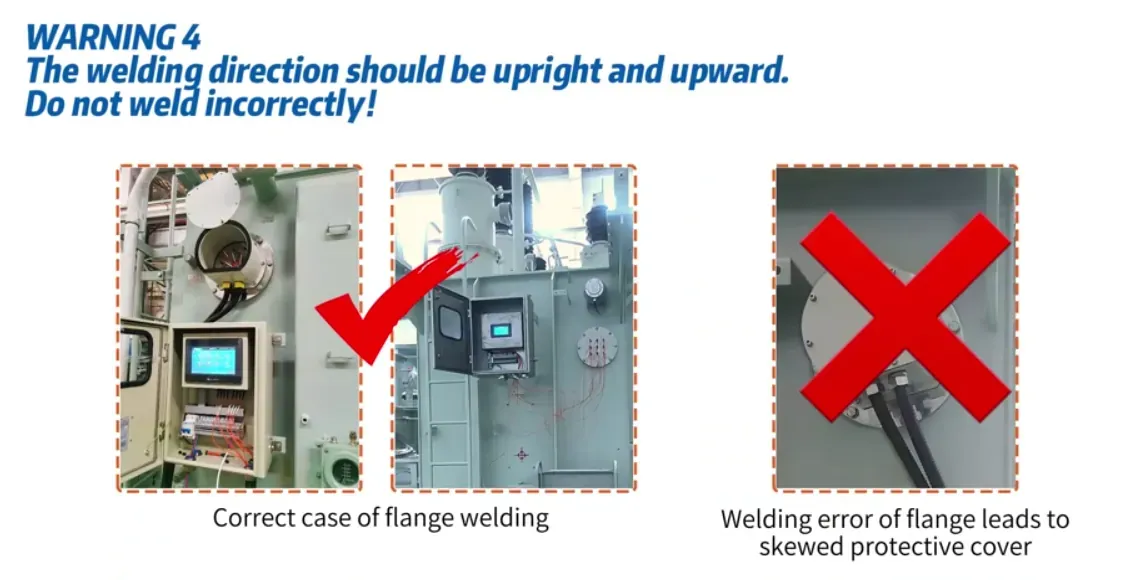

Confirm Installation Requirements Before Transformer Assembly
Embedded winding fiber optic sensing is easier to plan during transformer design or manufacturing than after access becomes limited. Once windings are assembled and enclosed, reaching internal points may not be possible, and retrofit feasibility depends on the specific transformer. Parts such as transformer fiber optic installation components support routing, passage and protection of the fiber, and they are best specified together with the transformer manufacturer.
Furnace Transformer Temperature Monitoring Example Configuration
The table below is an example engineering configuration, not a customer project. It shows how different sensor types can share one monitoring plan.
| Measurement Area | Possible Sensor Type | Measurement Objective | Typical System Connection |
|---|---|---|---|
| Selected winding point | Fluorescence fiber optic probe | Direct temperature at a design-identified winding location | Fiber to monitoring instrument; RS485 / Modbus RTU where applicable |
| Multiple winding points | Several fluorescence fiber optic probes | Independent temperatures across phases or positions | Multi-channel instrument; PLC / SCADA as required |
| High-current connection | Fiber optic probe or RTD, depending on insulation and field exposure | Temperature at a joint or terminal carrying heavy current | Optical or conventional connection to the monitoring instrument |
| Accessible external surface | Infrared inspection or fixed non-contact measurement | Surface temperature of visible connections or enclosure | Inspection records, or local measurement to plant system |
| Oil or air temperature | RTD / PT100 | Cooling medium and ambient conditions | Conventional transmitter to PLC / SCADA |
When Fiber Optic Temperature Sensing Makes Sense
Fluorescence fiber optic sensing fits when the project involves:
- Direct measurement at winding points
- Electrical isolation requirements at the sensing point
- A high-voltage environment, where fiber optic sensing near high-voltage equipment is a common reason to choose optical probes, or wider high-voltage equipment temperature monitoring needs
- Strong electromagnetic fields, a topic covered under temperature measurement in strong electromagnetic fields
- Defined internal measurement points
- Multiple optical measurement channels
- Applications where metallic sensor wiring is undesirable
Fiber optic sensing is unnecessary in several situations. Ordinary ambient temperature measurement does not need it. Simple accessible surface measurement at low voltage rarely justifies it. Low-cost HVAC-type measurement is better served by conventional sensors. Wherever conventional sensors already meet the electrical, access and accuracy requirements, they remain a perfectly reasonable choice. Fiber optic probes are worth the added planning at the points where conventional sensors do not fit.
Furnace Transformer Monitoring Information for an RFQ
An engineering review of a furnace transformer monitoring request normally needs the following:
- Transformer type and application
- Rated operating conditions available from the transformer design
- Number of intended measurement points
- Winding or connection measurement locations
- Required temperature range
- Required probe structure
- Required fiber length
- Required number of channels
- Communication interface
- PLC / SCADA integration requirement
- Installation stage and routing constraints
A partial list is still enough to start; the missing items can be settled as the measurement plan develops. Oil-filled designs may also look at the oil-immersed transformer fiber optic temperature monitoring system configuration, and probe selection starts from the fluorescence fiber optic temperature probe options.
Defining the Right Furnace Transformer Temperature Monitoring System
Furnace transformer thermal behavior depends on design and operating duty, so the monitoring plan has to start there. Winding hot spots cannot always be represented by ambient or surface measurements, and direct measurement at selected points fills that gap. Fluorescence fiber optic sensing provides direct temperature measurement at those defined points, with the number and position of sensors following transformer engineering. The monitoring instrument and communication interface then follow plant requirements.
INNO combines fluorescence fiber optic temperature sensors with compatible multi-channel monitoring instruments for transformer winding and high-voltage temperature measurement.
Projects involving new transformer design, winding sensor placement or multi-channel monitoring can be discussed through the INNO engineering team with the intended measurement points, channel count and system-interface requirements.
