There is no universal fixed number of fiber optic temperature sensors for every transformer. The number of sensors needed for transformer winding temperature monitoring depends on how many independent physical locations must be directly measured, not on a standard quantity that applies to all designs.
For fluorescence-based point sensing, one defined measurement point normally requires one fiber optic temperature probe connected to one active monitoring channel. This relationship — one defined measurement point, one probe, one active channel — is the starting point for planning sensor count on any transformer winding temperature monitoring project.
What actually determines the number of sensors is a combination of factors: how many phases need to be covered, how many winding locations are of interest, whether known thermally critical locations have already been identified, and how many active monitoring channels are available on the instrument. The sections below walk through each of these factors and give example configurations for oil-immersed and dry-type transformers.
One Sensor Measures One Defined Winding Location
One point sensor measures one defined physical location. A fluorescence-based fiber optic temperature probe reports the temperature at the position where its sensing tip is installed, and nothing beyond that position.
This means sensor count scales directly with the number of independent locations that need direct measurement. If a project requires measurement at three independent locations, it normally needs three probes and at least three active monitoring channels. If six independent locations are required, six probes and at least six active channels are normally needed.
These fiber optic temperature sensors are point sensors. They are not distributed temperature sensing (DTS) devices, and a group of point probes connected to one instrument does not become a continuous or distributed measurement system — it remains a set of independent point measurements at the selected locations.
What Determines the Number of Sensors?
Several factors determine how many probes a specific transformer winding monitoring project actually needs.
Phase Coverage
A project may require monitoring on one phase only, on all three phases, or on a comparison basis between phases. If the monitoring objective includes comparing temperature across phases A, B and C, at least one measurement location is normally selected on each monitored phase.
Winding Coverage
A project may monitor a single winding region, or it may require multiple independent locations within the same winding — for example, different axial positions or different winding sections. Each additional independent location adds one probe to the configuration.
Known Thermal Locations
Where thermal design data, factory test results, or prior engineering analysis have already identified specific locations of interest, probes are normally installed at those known thermally critical locations rather than at arbitrary points.
Measurement Objective
A single verification point calls for a different sensor count than long-term multi-point monitoring intended to track temperature behavior across several locations over the life of the transformer.
Comparison Between Locations
If the goal is to compare temperature between different phases, windings, or axial positions, each location being compared needs its own probe and its own active channel — a single probe cannot represent more than the location where it is installed.
Monitoring Channel Capacity
Sensor count and monitoring channel count must be matched. The monitoring instrument should provide at least as many compatible active channels as the number of probes that need to be measured independently.
Example Sensor Counts for Transformer Winding Monitoring
The table below shows example configurations. These are configuration examples, not universal transformer design rules.
| Monitoring Objective | Example Arrangement | Typical Probe Count | Minimum Active Channels |
|---|---|---|---|
| One defined winding point | 1 selected location | 1 | 1 |
| One point on each phase | 3 phases × 1 location | 3 | 3 |
| Two selected points per phase | 3 phases × 2 locations | 6 | 6 |
| Three selected points per phase | 3 phases × 3 locations | 9 | 9 |
These are configuration examples, not universal transformer design rules. A specific transformer may require fewer or more locations depending on its winding arrangement and monitoring objective.
How Many Sensors Are Used in Oil-Immersed Transformers?
In oil-immersed transformers, probes are installed at selected winding locations inside the tank, with fiber routed from each sensing tip to a tank penetration or feedthrough point where it connects to the external monitoring instrument.
Probe installation normally needs to be considered during manufacturing or at an appropriate overhaul stage, since the sensing tips and internal fiber routing are placed inside the winding structure. The number of probes for a given unit should be planned together with the number of active channels on the monitoring instrument, so that every installed probe has a corresponding channel available.
Relevant products include the oil-immersed transformer winding fiber optic temperature sensor and the oil-immersed transformer fiber optic temperature monitoring system. Tank penetration and routing hardware fall under transformer fiber optic installation components.
How Many Sensors Are Used in Dry-Type Transformers?
In dry-type transformers, sensor count depends on the coil geometry, the number of phases, and which coil locations are selected for direct measurement. Available installation space within and around the coils, along with the required fiber routing path, also affects how many probes can practically be installed.
If the monitoring objective includes comparing temperature between phases or between different coil positions, each compared location requires its own independent probe. As with oil-immersed units, the total probe count should match the number of independent measurement points actually required, not a fixed assumption about coil count.
Probe selection for dry-type installations starts from the same fiber optic temperature sensors used across point-sensing applications. For a complete monitoring package, see the dry-type transformer winding fiber optic temperature monitoring system.
For a broader view of how winding temperature monitoring fits alongside other transformer temperature measurements such as top-oil or WTI/OTI readings, see transformer temperature monitoring.
Do More Sensors Automatically Find the Transformer Hot Spot?
No. Adding more probes increases the number of monitored physical locations. It does not automatically identify an unknown hottest point in the winding.
Measurement locations are normally selected using thermal design data, winding geometry, engineering analysis, or previous test results that point to known thermally critical regions. A probe installed at a selected hot-spot location reports the temperature at that specific location; it does not scan the winding or search for the hottest point on its own.
More probes increase monitored locations but do not automatically locate an unknown hot spot. For a closer look at how hot-spot locations are selected and measured directly, see direct transformer hot spot monitoring.

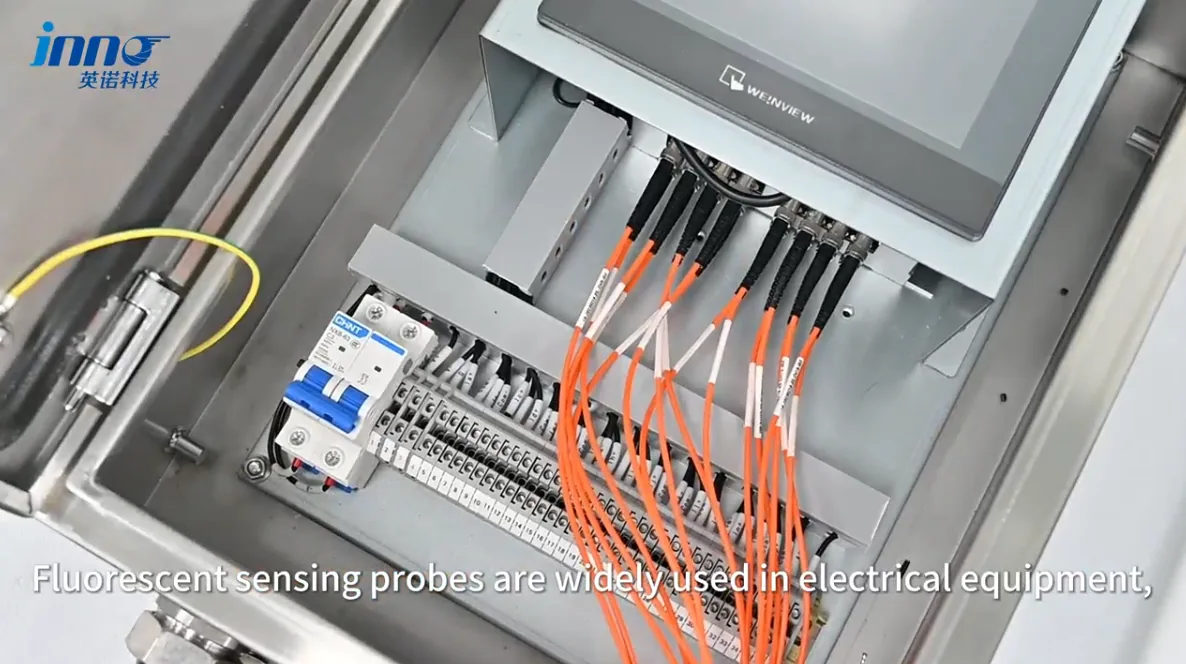

How Sensor Count Determines Monitoring Channel Count
Sensor count and active monitoring-channel count are closely related in point-sensing systems. For fluorescence-based point sensing, each independent probe normally requires one compatible active monitoring channel.
- 3 probes normally require at least 3 active channels
- 6 probes normally require at least 6 active channels
- 9 probes normally require at least 9 active channels
Higher-channel-count instruments are used when more independent measurement points are required for a project — the channel count of the instrument should be selected to match the planned probe count, not the other way around. Instrument options include fiber optic temperature transmitters and monitoring hosts as well as complete fiber optic temperature monitoring systems.
How to Choose Between 3-Channel, 6-Channel and 9-Channel Monitoring
Channel count should be selected based on the number of independent physical locations that need direct, simultaneous measurement.
- 3-channel configuration: Supports up to three independently monitored point sensors when the selected instrument provides three active channels. One selected location per phase is one possible three-phase example.
- 6-channel configuration: Supports up to six independently monitored point sensors when the selected instrument provides six active channels. Two selected locations per phase is one possible three-phase example.
- 9-channel configuration: Supports up to nine independently monitored point sensors when the selected instrument provides nine active channels. Three selected locations per phase is one possible three-phase example.
These are configuration examples, not fixed industry rules for transformers.
Exact compatibility and available functions depend on the selected monitoring instrument. The right channel count is the one that matches the number of measurement points the project actually requires, plus any planned spare capacity.
Oil-Immersed vs Dry-Type Transformer Sensor Planning
| Planning Item | Oil-Immersed Transformer | Dry-Type Transformer |
|---|---|---|
| Probe placement | Selected winding locations inside the tank | Selected coil locations within the winding structure |
| Fiber routing | Routed internally from the winding to a tank exit point | Routed along the coil and out to the monitoring instrument |
| Internal access | Access typically limited to manufacturing or overhaul stages | Access depends on coil construction and available space |
| Tank penetration requirement | Requires a tank penetration or feedthrough | Not applicable in the same way; no sealed tank to penetrate |
| Installation stage | Normally planned during manufacturing or an appropriate overhaul | Normally planned during manufacturing or coil assembly |
| Number of measurement points | Determined by selected winding locations and phase coverage | Determined by selected coil locations and phase coverage |
| Monitoring channel planning | Matched to the number of installed probes | Matched to the number of installed probes |
Transformer Fiber Optic Sensor Count Checklist
- Transformer type (oil-immersed or dry-type)
- Number of phases
- Winding arrangement
- Target measurement locations
- Known thermal-critical locations
- Number of independent physical points
- Probe structure
- Available installation space
- Internal fiber route
- Tank feedthrough requirement, if applicable
- Required active channel count
- Local display requirement
- Alarm requirement
- PLC / SCADA integration requirement
For a transformer project, the sensor count should be confirmed from the winding arrangement and the number of independently monitored physical locations rather than selected from a fixed standard quantity.
