- Choosing an RF temperature sensor starts with the physical measurement point (surface, embedded, fixture or component), not with temperature range alone.
- Thermocouples and RTDs still work at many locations, provided wiring, grounding and measurement electronics suit the field conditions.
- Conductive sensor leads in strong RF environments can add signal pickup, grounding complications and installation constraints.
- Infrared measurement has no sensor wiring, but it needs optical access and a target surface suited to non-contact readings.
- Fluorescence fiber optic sensors suit defined contact points that require electrical isolation and high resistance to electromagnetic interference.
- One fluorescence probe measures one defined point. Several points need several probes and channels.

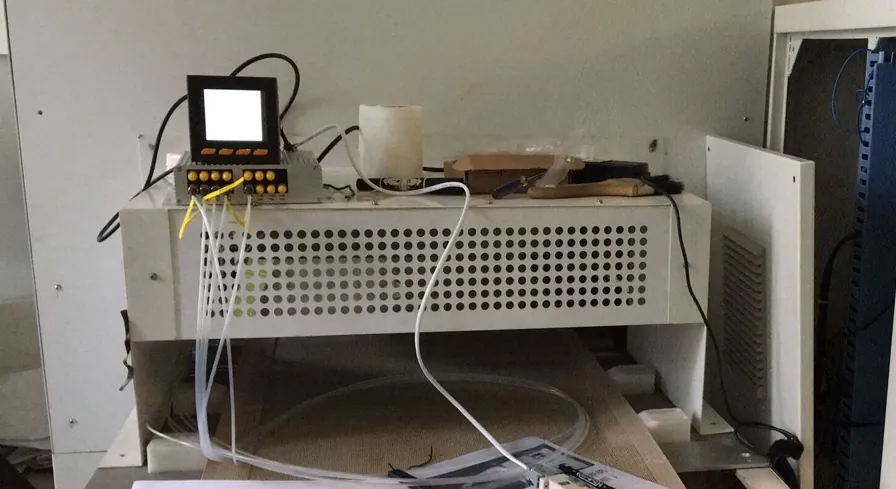

What Makes an RF Temperature Sensor Different?
RF fields change the sensor question more than the temperature range does. A reading of 150 °C is routine in most plants. Inside an energized RF structure, the same reading raises questions about conductive wiring, grounding, signal integrity, electrical isolation, optical access and where the sensor can physically sit.
An RF temperature sensor is not a separate sensing technology. The term covers thermocouples, RTDs, infrared measurement and fiber optic sensors, whichever suits the environment in question.
Conductive leads are the main variable. They complicate temperature measurement in strong electromagnetic fields because grounding, signal pickup and sensor routing all have to be managed together.
Which Temperature Sensors Can Be Used in RF Environments?
Thermocouples
Thermocouples are compact contact sensors with small junctions and broad industrial use. Their metallic leads can pick up RF energy or create grounding paths, so routing and signal conditioning need attention. Where those effects can be controlled, thermocouples remain a sound choice.
RTD / PT100 Sensors
RTDs give stable contact measurement wherever conductive wiring is acceptable. They connect electrically to measurement electronics, so cable routing, shielding and grounding can matter in RF environments.
Infrared Temperature Measurement
Infrared systems read temperature without a sensor lead touching the target, which helps when line of sight exists. Results depend on optical access and the target surface, and hidden embedded points cannot be read directly. The trade-offs between point and non-contact temperature measurement often decide this branch of the selection.
Fluorescence Fiber Optic Temperature Sensors
Fluorescence fiber optic temperature sensors measure at a contact point through an optical path. No electrical sensing conductor reaches the measurement point, which gives electrical isolation and high resistance to electromagnetic interference. That makes them useful for embedded or difficult RF measurement points.
RF Temperature Sensor Comparison
| Sensor Type | Measurement Method | Electrical Conductors at Measurement Point | Line of Sight Required | Suitability for Embedded Points | Considerations in Strong RF Fields |
|---|---|---|---|---|---|
| Thermocouple | Contact, thermoelectric junction | Yes, metallic leads | No | Possible where leads can be routed | Lead pickup, grounding and signal conditioning must be managed |
| RTD / PT100 | Contact, resistance change | Yes, metallic leads | No | Possible where element size and routing allow | Cable routing, shielding and grounding can matter |
| Infrared / Pyrometer | Non-contact, emitted radiation | None on the target | Yes | Limited to visible surfaces | Needs optical access and a suitable target surface |
| Fluorescence Fiber Optic | Contact, fluorescence decay time | No electrical sensing conductor | No | Well suited to defined embedded points | High resistance to EMI; suitability still depends on probe construction and installation |
RTDs and thermocouples remain the practical default when wiring can be managed. Infrared covers visible surfaces. Fiber optic sensing earns its place where conductors at the point are undesirable or the point is embedded.
When Conductive Sensor Wiring Becomes a Limitation
Metallic sensor leads behave as part of the electromagnetic system. In an RF field they can couple energy, carry induced signals into measurement electronics and create unintended grounding paths. The result may appear as noise, unstable readings or installation constraints around the equipment.
How much this matters depends on field strength, frequency, conductor geometry, cable routing, shielding, grounding and measurement electronics. No single threshold applies, and well-shielded, well-grounded installations often work without trouble.
Electrical potential differences add a second concern. A lead running from an energized region to grounded instrumentation forms a conductive path that isolation is meant to remove. An electrically isolated temperature sensor removes that path at the probe, which is why isolation also matters in high-voltage temperature monitoring.
The practical question is whether leads can be routed, shielded and grounded so readings stay reliable and the equipment is undisturbed. If so, conventional sensors are fine. If not, the sensing path itself has to change.
When Infrared Measurement Works Better
Infrared can be the simpler option when the surface is visible, line of sight is available and surface temperature is the required quantity. With no contact sensor on the target, there is nothing to route, ground or shield at the measurement point.
Limits appear quickly, though. Hidden internal points are out of reach. Reflective surfaces, small targets and awkward geometry complicate readings, and emissivity must be considered for the surface being viewed.
Not every RF temperature measurement calls for fiber optics. When the point is visible and the surface reading answers the question, infrared is often the right tool.
When a Fiber Optic RF Temperature Sensor Makes Sense
Fiber optic sensing fits when several of these conditions apply together:
- The environment is a strong RF or electromagnetic field.
- Conductive sensor wiring is undesirable at the measurement point.
- Electrical isolation is required.
- Contact measurement is needed at a defined physical point.
- The point is embedded or difficult to access.
- Several isolated points need centralized acquisition.
If an RTD, thermocouple or infrared system already meets the requirement, there is no reason to switch. Fiber optics is one option among several, not the default answer for every RF application.
For electromagnetically demanding points, the MRI and RF fiber optic temperature probe is one probe construction to evaluate against the installation.
How Fluorescence Fiber Optic Temperature Measurement Works
Excitation light travels down the optical fiber to a fluorescent sensing material at the probe tip. The material returns fluorescence along the same fiber, and a photodetector in the instrument records it as a decay waveform.
The instrument extracts the fluorescence lifetime from that waveform. After calibration, the lifetime maps to temperature, because the decay behavior of the material changes predictably with temperature. Temperature is derived from decay lifetime, not simply from brightness, so ordinary changes in light intensity are not the measurement variable.
Everything between probe tip and instrument is optical. No electrical signal is generated or carried at the sensing point, which is the basis for the electrical isolation described earlier. Fluorescence fiber optic temperature sensing uses the same optical measurement principle across RF and other demanding equipment environments.
RF and Microwave Temperature Measurement Are Related, but Not Identical
RF and microwave equipment can both create strong electromagnetic environments. Equipment design, operating frequency, field distribution, heating mechanism and measurement access still differ between them, so a sensor that suits one arrangement may not suit another.
Selection logic carries over, though. A microwave temperature sensor faces the same checks as an RF one: conductive wiring, optical access and field conditions must be evaluated for the actual equipment. Industrial microwave equipment may also need different sensor placement from other microwave temperature monitoring applications.
During RF and microwave heating, probe locations must follow the actual heating zones and measurement access.
Typical RF Temperature Measurement Points
Fluorescence fiber optic probes are typically considered at points such as:
- RF heating equipment
- Microwave heating equipment
- RF test fixtures
- Plasma-related equipment measurement points
- High-voltage RF test environments
- MRI and RF test arrangements where the specific probe is suitable
- Electrically isolated component testing
Actual probe construction, material compatibility and installation method must be confirmed for each equipment environment. Suitability at one location does not carry over automatically to another.
One Fiber Optic Probe Measures One Defined Point
Fluorescence sensing is point sensing. One probe measures one defined physical point, and the sensing tip must be placed at the intended location. Multiple points require multiple probes and corresponding channels.
It is not distributed temperature sensing. The fiber does not measure continuously along its length, does not map temperature, and does not automatically locate unknown hot spots. If the hot spot position is unknown, the probe layout has to be planned around likely locations.
Multi-point monitoring is handled by acquisition hardware such as a multi-channel fiber optic temperature transmitter, with each probe assigned to its own channel.
Typical INNO Fluorescence Fiber Optic Parameters
Typical values depend on probe and monitoring-system configuration. The table lists a typical INNO fluorescence fiber optic configuration, such as a standard fluorescence fiber optic temperature probe with a compatible instrument.
| Parameter | Typical Configuration |
|---|---|
| Measurement Principle | Fluorescence decay time |
| Temperature Range | −40 °C to +260 °C |
| Accuracy | ±0.5 °C to ±1 °C depending on configuration |
| Resolution | 0.1 °C |
| Response | <1 s for standard configurations |
| Probe Diameter | 2–3 mm, configurable |
| Fiber Length | Configurable according to application requirements |
| Electrical Insulation | >100 kV for applicable configurations |
| Connector | ST |
| Channels | Single-channel and multi-channel configurations |
| Communication | RS485 / Modbus RTU for applicable instruments |
How to Choose an RF Temperature Sensor
Define the physical measurement point. Decide whether the target is a surface, an embedded location, an internal component, a fixture, a heater or a sample. This single decision removes several options immediately.
Determine whether contact measurement is possible. Consider physical access, line of sight, probe attachment and sensor routing. Without line of sight, infrared is out. Without room for leads, conventional contact sensors become difficult.
Evaluate the RF or electromagnetic environment. Field conditions, conductive wiring, grounding, shielding and electrical isolation requirements all bear on whether a temperature sensor for RF equipment can use metallic leads.
Define the measurement performance actually needed. Keep accuracy, resolution, response and repeatability separate. Resolution of 0.1 °C does not imply 0.1 °C accuracy, and a fast response does not guarantee a stable reading.
Define the number of points. A single point and a multi-point layout lead to different probe counts, channel counts and instruments.
Define instrument integration. Decide whether readings go to RS485 / Modbus RTU where applicable, a DAQ system, a PLC or a higher-level system for industrial temperature monitoring.
| Application Condition | Sensor Option to Consider | Reason | Main Check Before Selection |
|---|---|---|---|
| Accessible conventional point | Thermocouple / RTD | Simple contact measurement with established instrumentation | Lead routing, shielding and grounding in the field |
| Visible surface | Infrared | No sensor lead on the target | Line of sight, surface condition and emissivity |
| Embedded strong-RF point | Fiber optic | Optical path with no electrical sensing conductor at the point | Probe construction, material compatibility and placement |
| Electrically isolated high-voltage point | Fiber optic | Isolation between sensing point and instrument | Insulation rating for the specific configuration |
Matching the Sensor to the RF Measurement Point
RF temperature sensor selection starts with the physical measurement point. Conventional sensors remain suitable in many RF systems, and infrared is useful when optical access and a surface reading are appropriate. Channel count follows the actual number of defined points.
Fluorescence fiber optic temperature sensors become valuable where electrical isolation, embedded contact sensing or high resistance to electromagnetic interference is required.
RF or microwave equipment projects with defined electrically isolated or high-EMI measurement points can be discussed with the INNO engineering team using the intended measurement locations, temperature range, RF environment and channel requirements.
