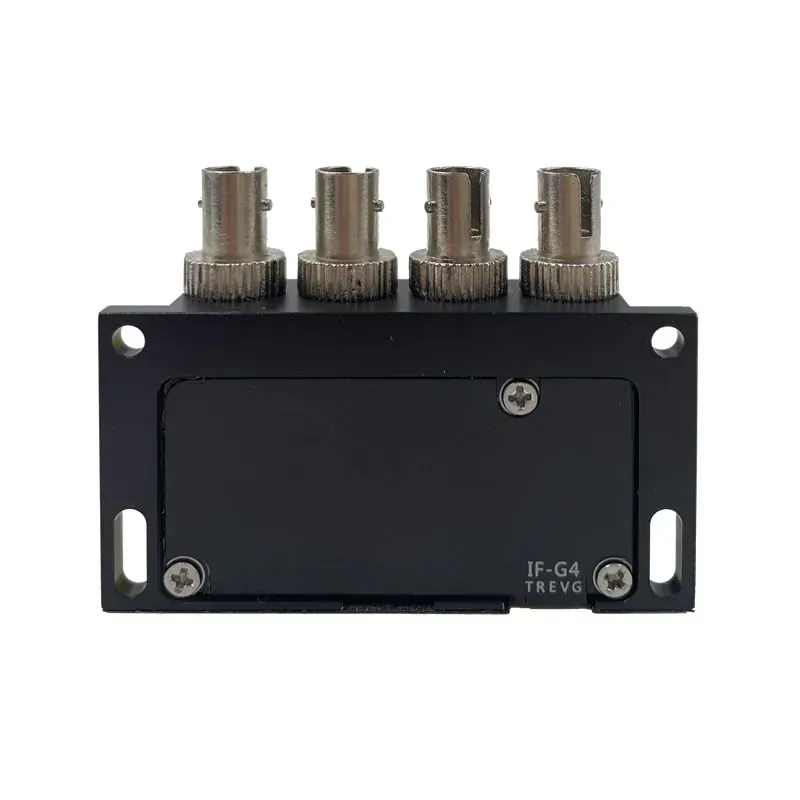

IF-G4 Four-Channel OEM Fiber Optic Temperature Module
A compact four-channel optical temperature acquisition module for integration into industrial equipment, test platforms, and OEM monitoring assemblies.
FOUR-CHANNEL OEM OPTICAL TEMPERATURE ACQUISITION MODULE
Integrate optical signal acquisition into a host product without presenting a separate stand-alone monitor as the final solution.
It provides the acquisition role for equipment builders who need an integrated optical measurement subsystem.
An embedded OEM module rather than a complete probe-and-host monitoring package or a large multi-channel transmitter.

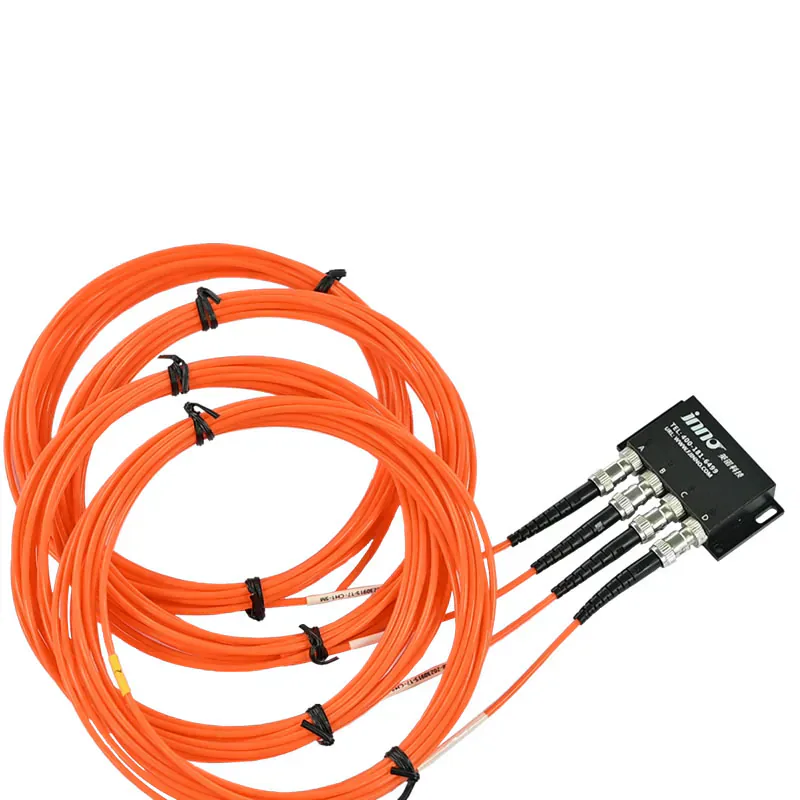

- Up to four separate optical probe channels within an equipment-level design.
- Integrate the module, probe connections, RS485 interface and enclosure design into the OEM equipment plan.
Product Overview
The four-channel OEM fiber optic temperature module is an embedded acquisition component for equipment builders, test-platform designers and custom monitoring assemblies. It processes up to four optical sensing channels and provides a RS485 communication interface within a compact integration format.
It is not a complete sensing system by itself. The final equipment design still needs compatible probes, a mechanical enclosure, power and interface planning, and a defined way to present or use the temperature data.
OEM INTEGRATION
Why Equipment Builders Choose an OEM Module
An embedded module keeps optical temperature acquisition within the larger equipment architecture.
- Four optical sensing channels for a compact subsystem.
- RS485 interface for planned equipment communication.
- Supports a tailored user interface or control architecture.
SYSTEM DESIGN
Integrating Four Optical Channels Into an Equipment Design
The module should be planned with the full equipment interface rather than added after the enclosure and control design are fixed.
- Define compatible probe connections.
- Plan the RS485 data interface.
- Confirm enclosure, power and operator-interface requirements separately.
PRODUCT DATA
Technical Specifications
Select the final configuration around the equipment design and required measurement points.
APPLICATION FIT
Typical Project Uses
Explains what an equipment-integrated acquisition module does and what still needs to be designed around it.
Equipment integration
Review this product’s role, installation method and related components against the actual application.
Panel instruments
Review this product’s role, installation method and related components against the actual application.
Industrial test systems
Review this product’s role, installation method and related components against the actual application.
Custom monitoring assemblies
Review this product’s role, installation method and related components against the actual application.
BUYER QUESTIONS
Frequently Asked Questions
Is this OEM module a complete temperature monitoring system?
No. It is an embedded four-channel acquisition component. Compatible probes, enclosure design, power, interfaces and the final operator or control system are selected separately.
How many optical sensing channels does the module support?
The product has four optical sensing channels. Confirm the required probe and connector arrangement for the final equipment design.
Can the module communicate with industrial equipment?
The standard configuration supports RS485 communication. Confirm protocol and equipment-level integration requirements with the project.
Where is this module normally used?
It is intended for equipment integration, panel instruments, industrial test systems and custom monitoring assemblies.
Does the module include probes?
Probes are selected separately according to the measurement location and application requirements.
What should be provided for an OEM review?
Share the required number of points, probe arrangement, available enclosure space, communication requirements and planned use of the measurement data.
RELATED PRODUCTS
Related Components and Systems
These products serve different roles in the same optical temperature-measurement path.
Standard Fluorescent Fiber Optic Temperature Probe
Fluorescence-based point temperature sensor for electrically isolated measurement in high-voltage, EMI, RF, microwave and other demanding environments.
IF-C Multi-Channel Fiber Optic Temperature Transmitter
A configurable multi-channel host that converts signals from separate fluorescence fiber optic probes into temperature data, relay alarms, RS485 communication, and optional analog outputs.
Busbar & Bolt Connection Fiber Optic Temperature Probe
An O-ring style fluorescent probe designed for direct point temperature measurement beneath busbar bolts and electrical connection fasteners.
PRODUCT CONFIGURATION REVIEW
Plan the Right Product Configuration
Tell us how this four channel OEM fiber optic temperature module will be used. INNO can review the measurement point, installation route, channel requirements and system interface against the selected product.
- Measurement target: Up to four separate optical probe channels within an equipment-level design.
- Installation method: Integrate the module, probe connections, RS485 interface and enclosure design into the OEM equipment plan.
- Product selection: Number of required channels
- System requirement: Equipment enclosure and user interface
Include the operating temperature range, number of measurement points and required communication or alarm outputs where applicable.
